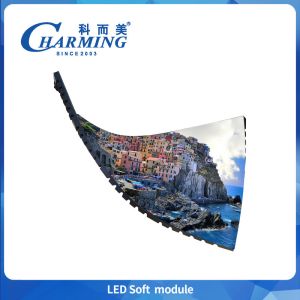

320x160mm Best Price HD Led Module 220v Soft Led Module P2 P2.5 P3
P4 Led Screen Digital Display for Adervrtising Event
Product introduce:
1.Smd led display module & cabinet is manufactured by using best
quality material,we make the module and cabinet by ourselves.
2.High precision, seamless splicing, accurate to size of the
electrical and mechanical processing 0.1mm
3.Compatible - the new structure designed to meet the lifting,
stacking requirements to meet the indoor requirements;
Product Details:
1.High-efficiency cooling, No fan ,mute design, noise-free.
2.Magnetic suction installation, simple and quick maintenance for
various installation environment, improve work efficiency.
3.Show all kinds of word, text, graph, picture, video, 2-dimention,
3-dimention cartoon and other information with your PC does
synchronously.
Product Parameters
Module Pixel | P2 | P2.5 | P3 | P3.076 | P4 |
|---|
Dimension(MM) | 320x160mm | 320x160mm | 192x192mm | 256x128mm | 320x160mm |
|---|
Max Power(W) | 25W | 25W | 13W | 18W | 6W |
|---|
Scan Mode | 1/40scan | 1/32scan | 1/20scan | 1/26scan | 1/32scan |
|---|
Refresh Rate(Hz) | 7680Hz | 7680Hz | 1920Hz/3840Hz | 1920Hz/3840Hz | 1920Hz/3840Hz |
|---|
Pixel Density(Dot/ ㎡) | 250000 Dot/m² | 160000 Dot/m² | 111111Dot/m² | 105625 Dot/m² | 62500Dot/m² |
|---|
Led Standard | SMD1515 | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
|---|
Brightness(CD/M²) | 700CD/M² | ≥800CD/M² | ≥800CD/M² | ≥700CD/M² | ≥400CD/M² |
|---|
Viewing Angle | 135° |
|---|
IP Rate | IP40 |
|---|
Life Span | ≥30000 Hours |
|---|
Working Voltage | DC 5V |
|---|
Grey Level | 14-16 bit |
|---|
Working Temperature | 20~50℃ |
|---|
Working Humidity | 10%~65%RH |
|---|
Maintenance Method | Pre maintenance |
|---|
Working Voltage | AC110V/220V |
|---|
Company Introduction
Charming Co., ltd has always been committed to technical innovation
and service of global entertainmet lighting & LED. In 2003, the
world's first led display was brought into the field of the
entertainmnet applications, and contiunes to lead the trend of
LED's in this field. It has developed into the first brand of
customer satisfaction in China's entertainment lighting Led. It has
obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB,
ROHS, SASO and other certifications. Adhering to the corporate
philosophy of " Charming Achieve Beauty ", we have an international
standard full-automatic led display production line with a factory
area of more than 10,000 sqm. We have provided quality products and
services to customers in more than 150 countries and regions for 21
years.
Technology Training And Documents and Certification
1. We provide the technology training for free, which contains the
operation training and maintenance training in the factory.
2. We provide the operation manual, software, test report and so
on.
3. We can also provide all kinds of certification such as CE, UL
and so on.
What we offer to customer?
1,Can we make any size of led display?
Nope, according the led module size and cabient size.
2,How to install led display?
We will provide drawings or Teamviewer to help you install.
3,How to order LED display?
Please tell me size of led display,where will the display be used.
4,How to ship?
Normally, the display will be shipped by air and sea, we suggest
you go with by sea because it is cheaper.
5,How to finish payment?
You can transfer payment by TT,West union, recommand Ali Trade
Assurance.
Warranty
We guarantee all our displays, modules, parts for two full years.
During this time, we will replace or amend all our goods for free
if there is something wrong with them. We provide lifetime
maintenance and charge only for the raw materials. We provide
technology training for free, which contains the operation and
maintenance training of the LED screens in the factory. We also
provide the operation manual, software, test report and so on. Any
associated CAD drawing on how to fix up the display and some other
expert suggestion will be provided.
